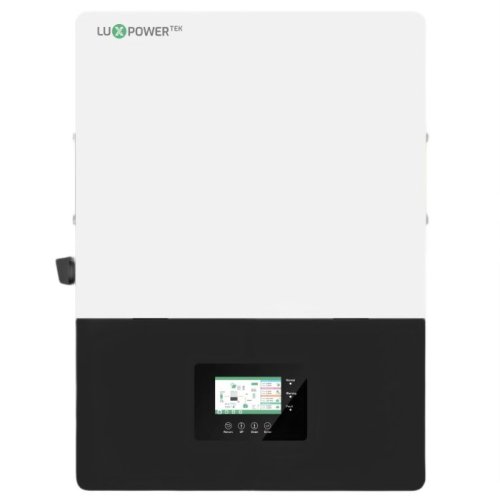

12kW Luxpower Single Phase Hybrid Solar Inverter

LXP-LB-EU 12K Hybrid Solar Inverter

Product Overview:

The LXP-LB-EU 12K is a high-performance single-phase hybrid inverter designed to integrate solar energy generation with battery storage and grid connectivity. It is ideal for residential, commercial, and industrial applications, offering enhanced energy efficiency and flexibility.

Key Features:

• Dual MPPTs: Equipped with two Maximum Power Point Tracking (MPPT) inputs, optimizing energy harvest from solar panels.

• Maximum PV Input: Supports up to 15 kW of photovoltaic (PV) input power, accommodating larger solar arrays.

• High Current Capacity: Offers a maximum charging and discharging current of 210A, suitable for high-demand applications.

• Parallel Operation: Supports up to 10 units in parallel, enabling scalability for various energy needs.

• Flexible Energy Management: Features a separate port for generator connection, AC coupling, or smart load connection, enhancing system versatility.

• Advanced Charging Features: Incorporates Time-of-Use (TOU) and weather optimization charging to reduce electricity bills.

Applications:

• Residential Solar Systems: Ideal for homeowners seeking to reduce energy costs and increase energy independence.

• Commercial Energy Solutions: Suitable for businesses aiming to enhance energy efficiency and reliability.

• Industrial Power Systems: Provides reliable power solutions for industrial applications with high energy demands.

Specifications:

• Input Voltage Range (PV): 100–600V DC

• MPPT Voltage Range: 120–500V DC

• Battery Voltage Range: 40–60V DC

• Efficiency: Up to 97.5%

• Operating Temperature Range: -25°C to +60°C

• Protection Class: IP65
