Single Phase

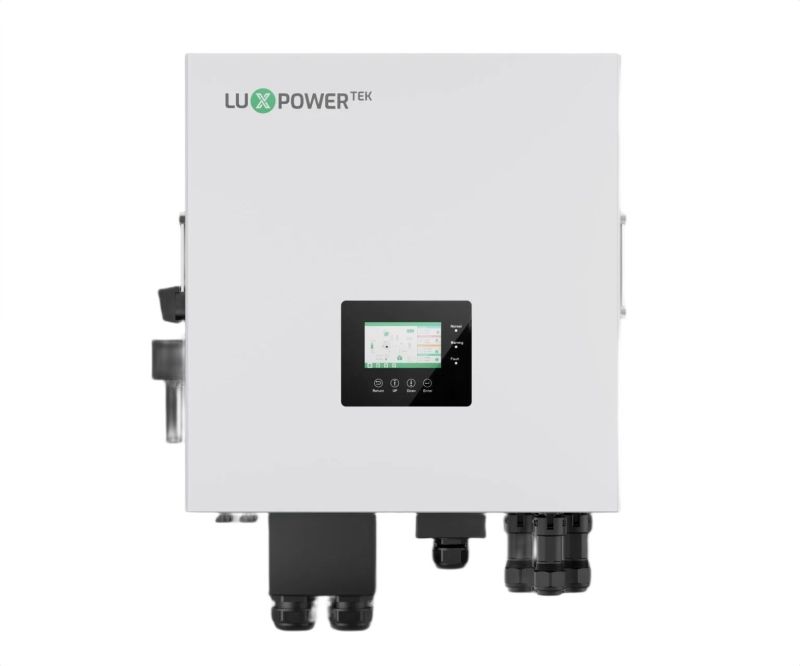

LXP-LB-EU 12K Hybrid Solar Inverter

Product Overview:

The LXP-LB-EU 12K is a high-performance single-phase hybrid inverter designed to integrate solar energy generation with battery storage and grid connectivity. It is ideal for residential, commercial, and industrial applications, offering enhanced energy efficiency and flexibility.

Key Features:

• Dual MPPTs: Equipped with two Maximum Power Point Tracking (MPPT) inputs, optimizing energy harvest from solar panels.

• Maximum PV Input: Supports up to 15 kW of photovoltaic (PV) input power, accommodating larger solar arrays.

• High Current Capacity: Offers a maximum charging and discharging current of 210A, suitable for high-demand applications.

• Parallel Operation: Supports up to 10 units in parallel, enabling scalability for various energy needs.

• Flexible Energy Management: Features a separate port for generator connection, AC coupling, or smart load connection, enhancing system versatility.

• Advanced Charging Features: Incorporates Time-of-Use (TOU) and weather optimization charging to reduce electricity bills.

Applications:

• Residential Solar Systems: Ideal for homeowners seeking to reduce energy costs and increase energy independence.

• Commercial Energy Solutions: Suitable for businesses aiming to enhance energy efficiency and reliability.

• Industrial Power Systems: Provides reliable power solutions for industrial applications with high energy demands.

Specifications:

• Input Voltage Range (PV): 100–600V DC

• MPPT Voltage Range: 120–500V DC

• Battery Voltage Range: 40–60V DC

• Efficiency: Up to 97.5%

• Operating Temperature Range: -25°C to +60°C

• Protection Class: IP65

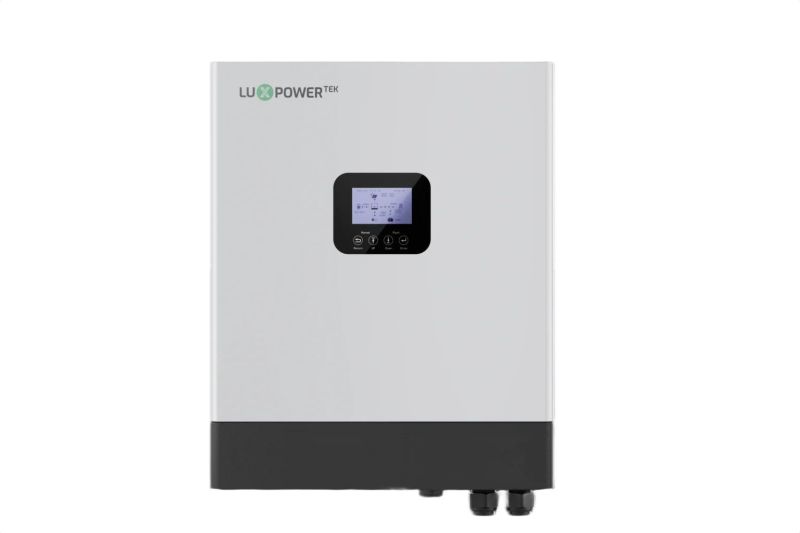

GEN-LB-EU 7-10K Hybrid Solar Inverter

Product Overview:

The GEN-LB-EU 7-10K is a high-performance single-phase hybrid inverter designed to integrate solar energy generation with battery storage and grid connectivity. It is ideal for residential, commercial, and industrial applications, offering enhanced energy efficiency and flexibility.

Key Features:

• Dual MPPTs: Equipped with two Maximum Power Point Tracking (MPPT) inputs, optimizing energy harvest from solar panels.

• Maximum PV Input: Supports up to 15 kW of photovoltaic (PV) input power, accommodating larger solar arrays.

• High Current Capacity: Offers a maximum charging and discharging current of 210A, suitable for high-demand applications.

• Parallel Operation: Supports up to 10 units in parallel, enabling scalability for various energy needs.

• Flexible Energy Management: Features a separate port for generator connection, AC coupling, or smart load connection, enhancing system versatility.

• Advanced Charging Features: Incorporates Time-of-Use (TOU) and weather optimization charging to reduce electricity bills.

Applications:

• Residential Solar Systems: Ideal for homeowners seeking to reduce energy costs and increase energy independence.

• Commercial Energy Solutions: Suitable for businesses aiming to enhance energy efficiency and reliability.

• Industrial Power Systems: Provides reliable power solutions for industrial applications with high energy demands.

Specifications:

• Input Voltage Range (PV): 100–600V DC

• MPPT Voltage Range: 120–500V DC

• Battery Voltage Range: 40–60V DC

• Efficiency: Up to 97.5%

• Operating Temperature Range: -25°C to +60°C

• Protection Class: IP65

GEN2-LB-EU 3-6K Hybrid Solar Inverter

Description:
The GEN2-LB-EU 3-6K is a single-phase hybrid solar inverter that integrates photovoltaic (PV) energy generation with battery storage. It offers seamless on/off-grid switching, making it suitable for both residential and small business applications. The inverter supports up to 10 units in parallel, providing scalability for various energy needs. With features like Time-of-Use (TOU) charging, weather-based smart charging, and 24/7 remote monitoring via the LuxpowerCloud platform, it ensures efficient energy management and cost savings.

Key Features:

• Dual Maximum Power Point Tracking (MPPT): Optimizes energy harvest from solar panels.

• High PV Input Capacity: Supports up to 9.6 kW of PV input.

• Wide Voltage Range: Operates within a 100–530V DC input range.

• High Discharge Current: Up to 140A, suitable for high-demand applications.

• Generator Input Support: Includes a dedicated port for generator connection with auto control and boost function.

• AC Coupling Function: Allows integration with existing solar systems.

• Smart Load Management: Enhances stability and efficiency of energy usage.

• Enhanced Monitoring: Provides real-time insights and remote management capabilities.

GEN2-LB-EU 3-6K Hybrid Solar Inverter

Key Features:

• Dual MPPTs: Equipped with two Maximum Power Point Tracking (MPPT) inputs, allowing for optimal energy harvesting from solar panels.

• Wide PV Input Voltage Range: Supports a DC input voltage range of 100–530V, accommodating various solar panel configurations.

• High PV Input Capacity: Can handle a maximum photovoltaic (PV) input power of up to 9.6 kW, ensuring efficient energy conversion.

• Parallel Operation: Supports up to 10 units in parallel, enabling scalability for larger energy needs.

• High Discharge Current: Offers a maximum discharge current of 140A, suitable for high-demand applications.

• Flexible Energy Control: Features dedicated ports for generator input, AC coupling, or smart load management, enhancing system flexibility.

• Advanced Charging Features: Incorporates Time-of-Use (TOU) charging and weather-based smart charging to optimize energy usage and reduce electricity bills.

• Remote Monitoring: Provides 24/7 real-time monitoring via the LuxpowerCloud platform, allowing for remote management and updates.

Applications:

• Residential Solar Systems: Ideal for homeowners seeking to reduce energy costs and increase energy independence.

• Small Business Energy Solutions: Suitable for small businesses aiming to enhance energy efficiency and reliability.

• Off-Grid and Backup Power: Provides reliable backup power during grid outages, ensuring uninterrupted electricity supply.
