Hybrid Inverters

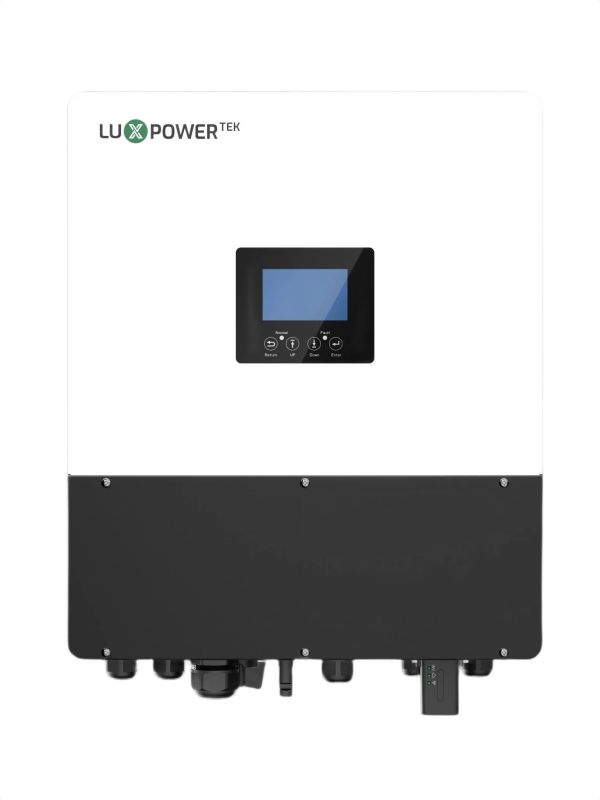

GEN2-LB-EU 3-6K Hybrid Solar Inverter

Description:
The GEN2-LB-EU 3-6K is a single-phase hybrid solar inverter that integrates photovoltaic (PV) energy generation with battery storage. It offers seamless on/off-grid switching, making it suitable for both residential and small business applications. The inverter supports up to 10 units in parallel, providing scalability for various energy needs. With features like Time-of-Use (TOU) charging, weather-based smart charging, and 24/7 remote monitoring via the LuxpowerCloud platform, it ensures efficient energy management and cost savings.

Key Features:

• Dual Maximum Power Point Tracking (MPPT): Optimizes energy harvest from solar panels.

• High PV Input Capacity: Supports up to 9.6 kW of PV input.

• Wide Voltage Range: Operates within a 100–530V DC input range.

• High Discharge Current: Up to 140A, suitable for high-demand applications.

• Generator Input Support: Includes a dedicated port for generator connection with auto control and boost function.

• AC Coupling Function: Allows integration with existing solar systems.

• Smart Load Management: Enhances stability and efficiency of energy usage.

• Enhanced Monitoring: Provides real-time insights and remote management capabilities.

Product Overview:

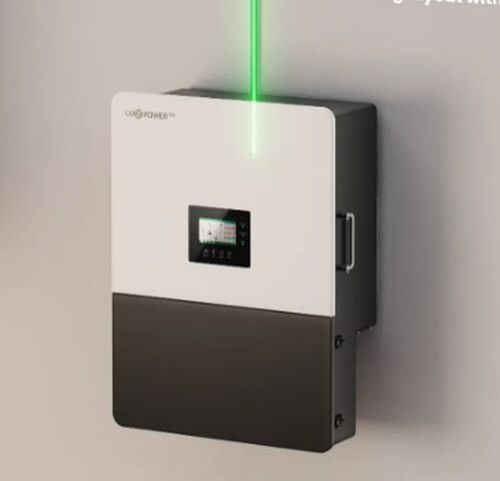

The GEN-LB-US 13K is a high-performance split-phase hybrid inverter designed to integrate solar energy generation with battery storage and grid connectivity. Tailored for North American residential applications, it offers seamless operation for grid-tied, off-grid, and backup power scenarios.

Key Features:

• Power Output: 13 kW

• Input Voltage Range: 100–550 V DC

• MPPT Voltage Range: 140–500 V DC

• Start-up Voltage: 120 V DC

• Maximum PV Input Current per MPPT: 26 A

• AC Output Voltage: 120/240 V split-phase

• Maximum AC Output Power: 15,000 W

• Efficiency: Up to 97.5%

• Ingress Protection: IP66-rated enclosure suitable for both indoor and outdoor installation

• Communication Ports: RS485, CAN, Wi-Fi, and LAN for compatibility with various battery brands and monitoring tools

Applications:

• Grid-Tied Homes with Battery Backup: Provides reliable power and energy independence.

• Off-Grid Remote Cabins: Ensures continuous power supply in remote locations.

• Retrofit with Existing Grid-Tied Systems: Easily integrates with existing setups using AC coupling.

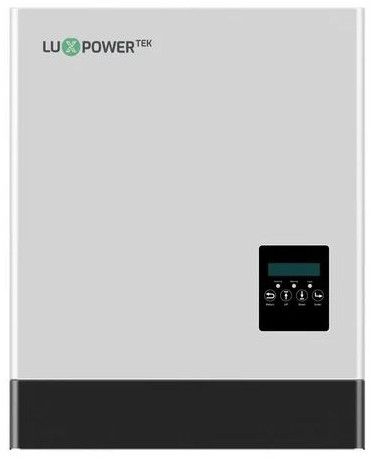

We offer the Luxpower 20kW Three Phase Hybrid Solar Inverter, designed for maximum efficiency with power output of 20 KW. This hybrid solar inverter operates at an input voltage range of 100-600 V DC, ensuring reliable performance. With a rated battery voltage of 48 V and up to 97.5% efficiency, it is ideal for residential and commercial applications. The IP65 rated protection and wide operating temperature range of -25°C to 60°C make it durable and suitable for various environments. Trust Luxpower for high-quality solar solutions.
