Split Phase

Product Overview:

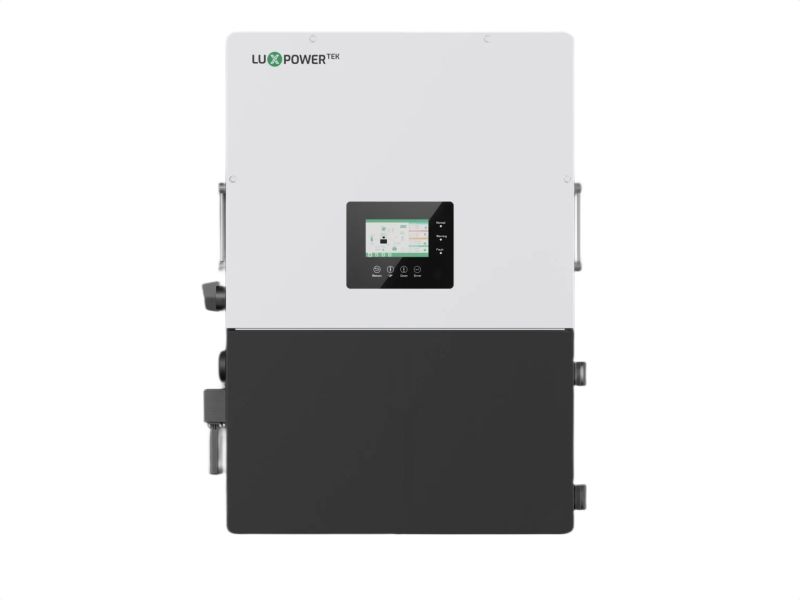

The LXP-LB-US 8K/10K is a UL-certified split-phase hybrid inverter designed for residential energy storage applications. It offers seamless integration with low-voltage batteries and features independent AC-coupling interfaces, making it ideal for both grid-connected and off-grid scenarios.

Key Features:

• Power Output: 8 kW (LXP-LB-US 8K) / 10 kW (LXP-LB-US 10K)

• Input Voltage Range: 100–600 V DC

• MPPT Voltage Range: 170–500 V DC

• Start-up Voltage: 140 V DC

• Number of MPPT Inputs: 2

• Maximum PV Input Power: 15 kW

• Battery Compatibility: Lithium-ion / Lead-Acid

• Rated Battery Voltage: 48 V

• AC Output Voltage: 120/240 V or 120/208 V

• Surge Power: Up to 120% of rated output

• Efficiency: Up to 97.5%

• Ingress Protection: IP65 / NEMA 4X

• Operating Temperature Range: -25°C to 60°C

• Warranty: 5 years

Applications:

• Residential Energy Storage: Reliable power for homes, ensuring energy independence and backup during outages.

• Grid-Tied Systems: Integrates seamlessly with existing grid infrastructure, optimizing energy consumption.

• Off-Grid Solutions: Ideal for remote locations where grid access is unavailable.

Product Overview:

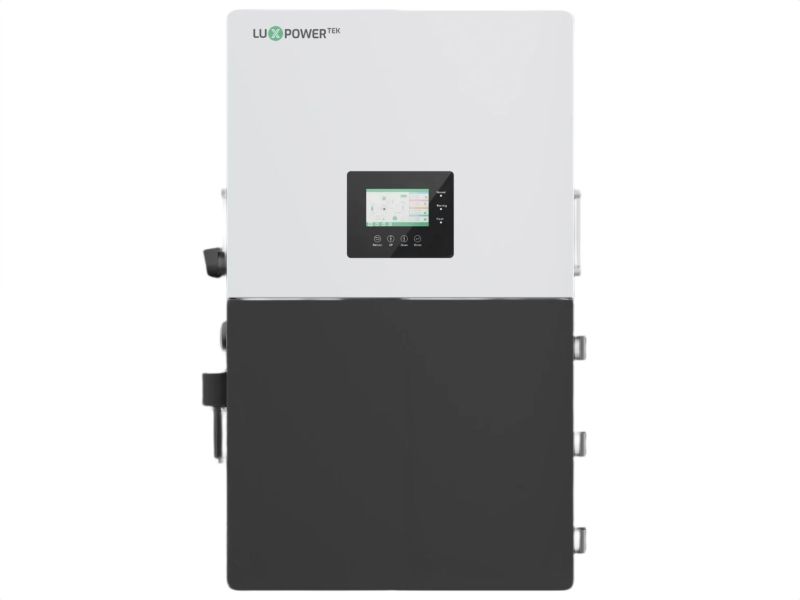

The LXP-LB-US 12K is a high-performance split-phase hybrid inverter designed for large-scale residential photovoltaic energy storage systems in North America. It integrates the inverter, charge controller, and rapid shutdown (RSD) into a single unit, offering a seamless solution for both grid-tied and off-grid applications. With certifications including IEEE 1547-2018, UL 1741 SA & SB, and SunSpec Modbus, it ensures compliance with industry standards.

Key Features:

• Power Output: 12 kW

• PV Input: Up to 18 kW

• MPPT Inputs: 3 MPPTs with 4 strings

• Grid Pass-Through: 200A for whole-home backup

• Battery Charging/Discharging: 250A

• Seamless Switching: On/off-grid operation with less than 20ms transfer time

• Advanced Functions: Peak shaving, smart load control, and AC coupling

• Integrated Protection: AFCI protection, integrated load and battery breakers

• Parallel Capability: Supports up to 10 units in parallel

• User Interface: LCD color touch screen

Applications:

• Residential Energy Storage: Provides reliable power for homes, ensuring energy independence and backup during outages.

• Grid-Tied Systems: Integrates seamlessly with existing grid infrastructure, optimizing energy consumption.

• Off-Grid Solutions: Ideal for remote locations where grid access is unavailable.

Product Overview:

The GEN-LB-US 13K is a high-performance split-phase hybrid inverter designed to integrate solar energy generation with battery storage and grid connectivity. Tailored for North American residential applications, it offers seamless operation for grid-tied, off-grid, and backup power scenarios.

Key Features:

• Power Output: 13 kW

• Input Voltage Range: 100–550 V DC

• MPPT Voltage Range: 140–500 V DC

• Start-up Voltage: 120 V DC

• Maximum PV Input Current per MPPT: 26 A

• AC Output Voltage: 120/240 V split-phase

• Maximum AC Output Power: 15,000 W

• Efficiency: Up to 97.5%

• Ingress Protection: IP66-rated enclosure suitable for both indoor and outdoor installation

• Communication Ports: RS485, CAN, Wi-Fi, and LAN for compatibility with various battery brands and monitoring tools

Applications:

• Grid-Tied Homes with Battery Backup: Provides reliable power and energy independence.

• Off-Grid Remote Cabins: Ensures continuous power supply in remote locations.

• Retrofit with Existing Grid-Tied Systems: Easily integrates with existing setups using AC coupling.

Product Overview:

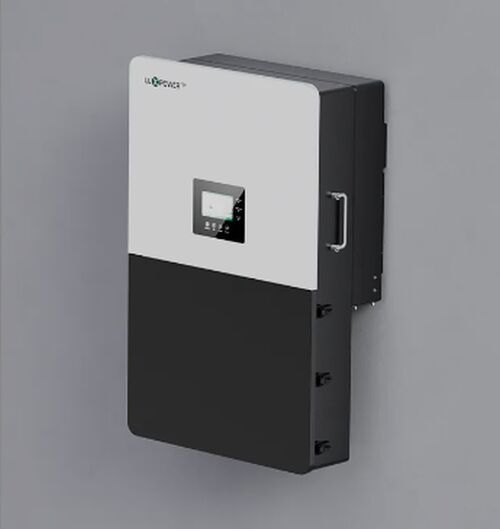

The GEN-LB-US 16K is Luxpower's most powerful split-phase hybrid inverter, engineered to meet the energy needs of large homes and mission-critical applications. With 120/240V split-phase output, up to 25kW of PV input, 250A battery current, and a built-in 400A battery breaker, this inverter is ready to support whole-home backup and advanced solar energy management.
